What is the meaning of earthing and grounding in electrical equipment and why is it important to use it?


Earthing and Grounding In Electrical Equipments

Earthing and Grounding In Electrical Equipments

"Earthing" and "grounding" are terms used in the context of electrical systems to ensure safety, proper functioning, and protection from electrical hazards. While in some regions, these terms may be used interchangeably, they often refer to slightly different aspects of electrical safety.

### Earthing:

Earthing refers to the connection of a part of an electrical system to the earth. This involves physically connecting conductive parts of electrical equipment to the ground via a conductor, typically a copper rod or plate buried in the earth. The primary purpose of earthing is to provide a low-resistance path for fault currents to flow safely into the ground.

### Grounding:

Grounding is a broader term that encompasses the entire system of connecting electrical equipment to the ground. It includes the use of grounding conductors, grounding rods, and grounding systems to create a safe path for fault currents.

### Importance of Earthing and Grounding:

1. Safety: One of the foremost reasons for earthing and grounding is safety. It helps prevent electric shocks and protects against electrocution by providing a safe path for fault currents to dissipate into the ground rather than passing through a person or equipment.

2. Equipment Protection: Earthing and grounding help protect electrical equipment and appliances from damage caused by electrical faults, lightning strikes, or voltage surges. It provides a path for excess current to flow away harmlessly.

3. Fault Detection: Properly grounded systems enable quick detection and isolation of faults. When a fault occurs, the current flow increases, triggering protective devices such as circuit breakers or fuses, which interrupt the circuit, preventing damage and fire hazards.

4. EMI/RFI Mitigation: Grounding also helps mitigate electromagnetic interference (EMI) and radiofrequency interference (RFI) by providing a reference point for voltage levels and reducing electromagnetic pollution.

5. Compliance with Standards: Many electrical codes and standards mandate the use of proper earthing and grounding in electrical installations to ensure compliance with safety regulations.

### Types of Earthing and Grounding:

- System Grounding: Connecting one conductor of the electrical system to the earth.
- Equipment Grounding: Connecting metal casings or frames of electrical devices and appliances to the earth.

### Conclusion:

Earthing and grounding play a critical role in maintaining a safe and reliable electrical system. They are fundamental in preventing electrical hazards, protecting equipment, ensuring system integrity, and complying with safety standards. Their proper implementation is essential in any electrical installation to safeguard both people and equipment from potential dangers associated with electrical faults and surges.

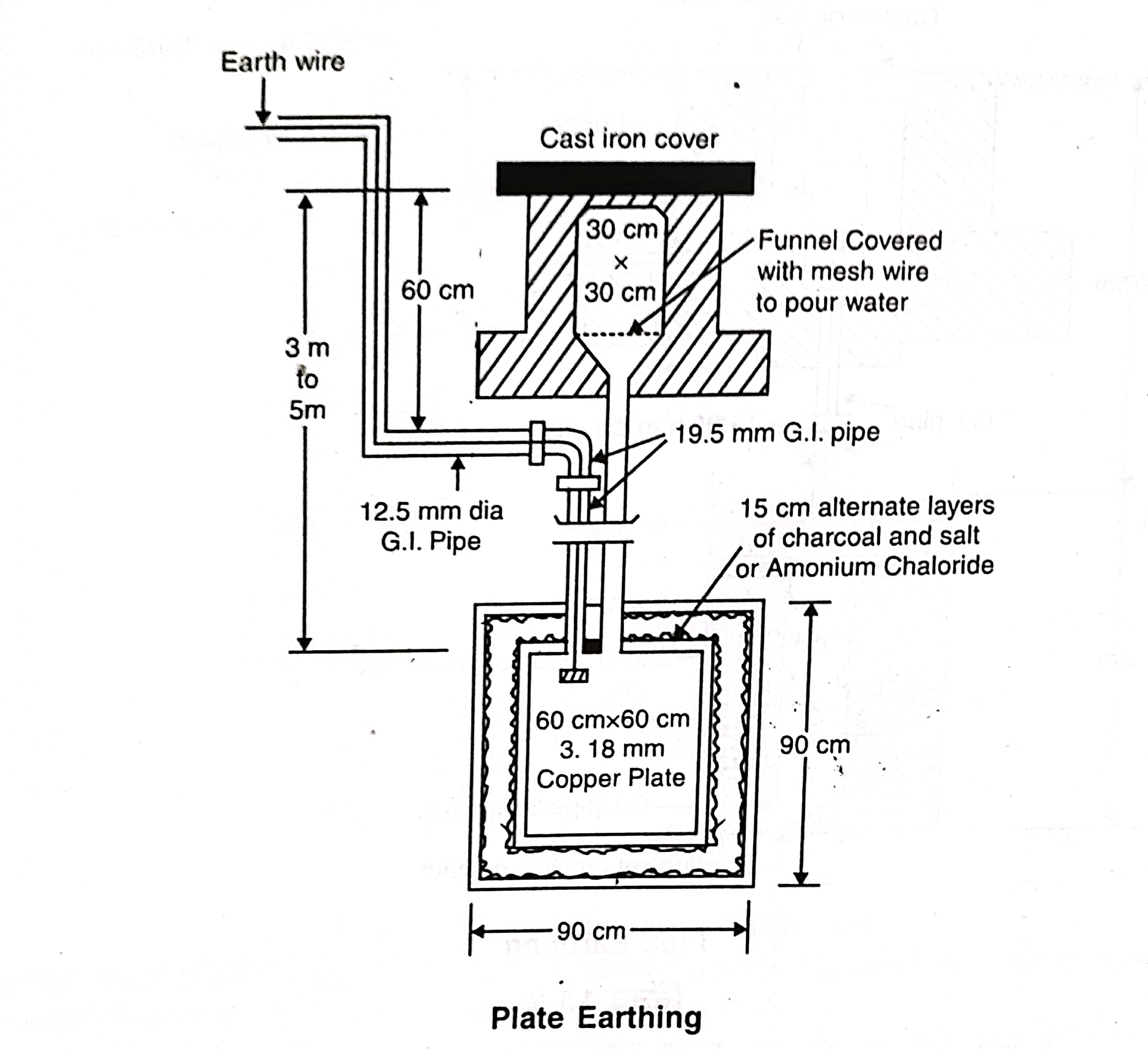

Describe a typical diagram of earthing and grounding in electrical equipment:

Diagram Description:

1. Electrical Equipment:
   - Representation of electrical devices or machinery requiring grounding and earthing.

2. Grounding Conductor:
   - A conductor or wire connected to the metal casing or frame of the equipment. This conductor leads to the grounding system.

3. Earthing Rod or Plate:
   - A rod or plate buried in the ground, connected to the grounding conductor. This serves as the point of contact with the earth.

4. Grounding System:
   - Represents the system of connections and conductors within the electrical installation designed to provide a path to the earth for fault currents.

5. Electrical Source:
   - Represents the power source or electrical supply connected to the equipment.

6. Safety Device:
   - This can include fuses, circuit breakers, or other protective devices in the electrical system designed to interrupt the circuit in case of a fault.


- The grounding conductor is connected to the metal frame or casing of the electrical equipment, ensuring that any fault current is directed away from the equipment.
- The grounding conductor is then connected to an earthing rod or plate buried in the ground, providing a safe path for fault currents to dissipate harmlessly into the earth.
- In case of a fault or excess current, the grounding system ensures that the current flows through the grounding conductor and into the earth, triggering protective devices to interrupt the circuit and prevent damage to the equipment or potential harm to individuals.

This diagram demonstrates how the grounding and earthing system creates a safe pathway for fault currents, thereby protecting both electrical equipment and personnel from electrical hazards.
